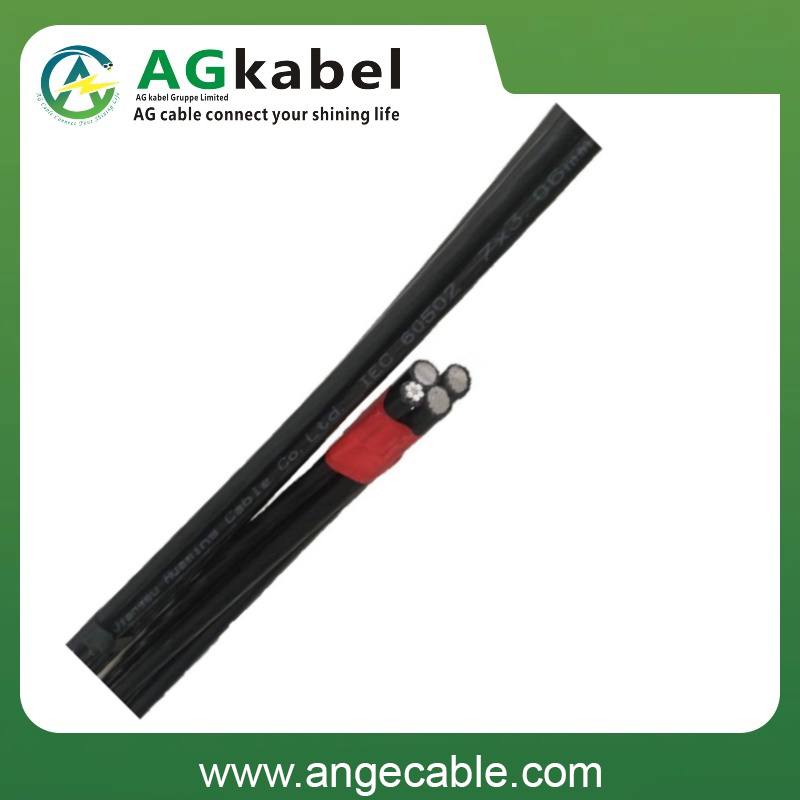

AGKABEL Aerial Bundle Core Cable (ABC Cable) – 600/1000V Aluminium XLPE
High-reliability overhead cable designed for aerial reticulation to residential and rural areas. Features Hard Drawn Aluminium conductors and XLPE X-90UV insulation, offering excellent UV stabilization for continuous sunlight exposure. Compliant with AS 3560.1:1988. Max operating temperature: 80°C. Available in 2, 3, and 4 Core configurations from 25mm² to 150mm².

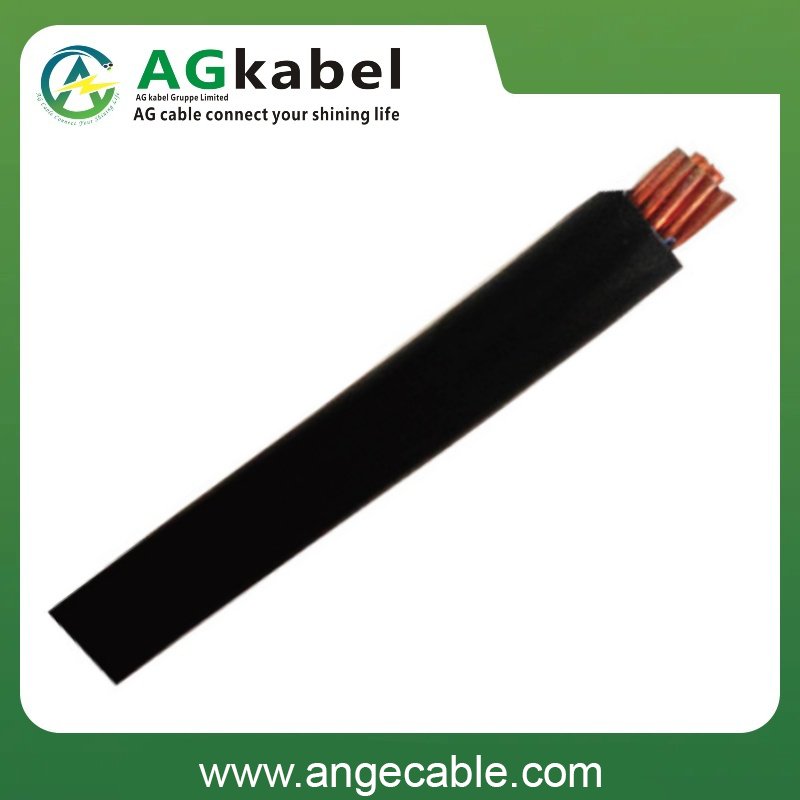

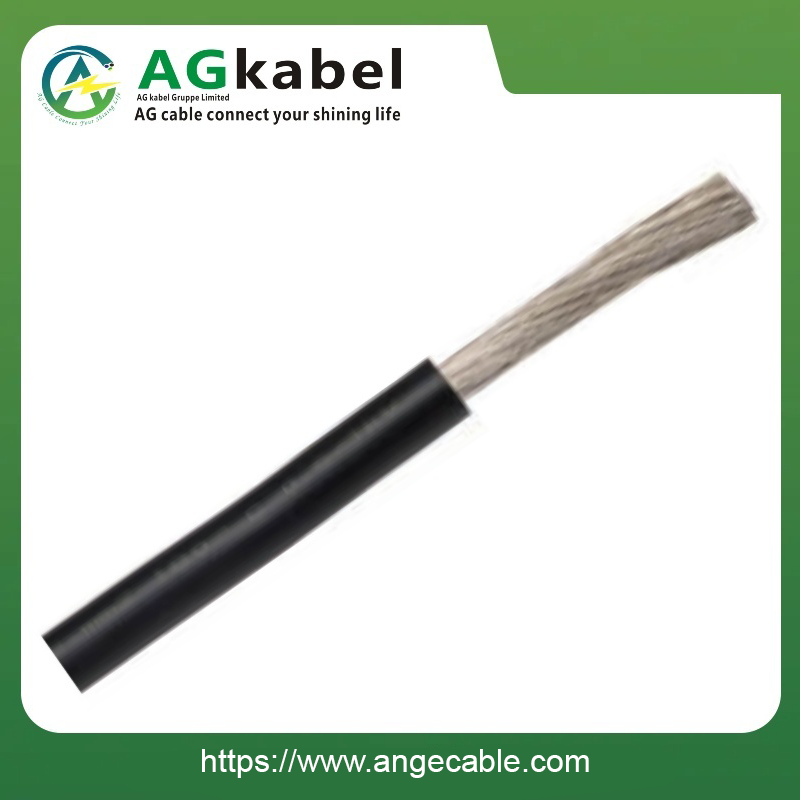

AGKABEL Aerial Single Core PHC Cable – 600/1000V Hard Drawn Copper PVC
AGKABEL Aerial Single Core PHC Cable – 600/1000V Hard Drawn Copper PVC
High-durability aerial service cable designed for domestic and small-to-medium commercial/industrial installations. Features Hard Drawn Copper conductors and PVC V-75 Black insulation with extra UV stability (increased carbon black sheath). Compliant with AS/NZS 5000.1:1999. Max operating temperature: 75°C. Available from 10mm² to 95mm².

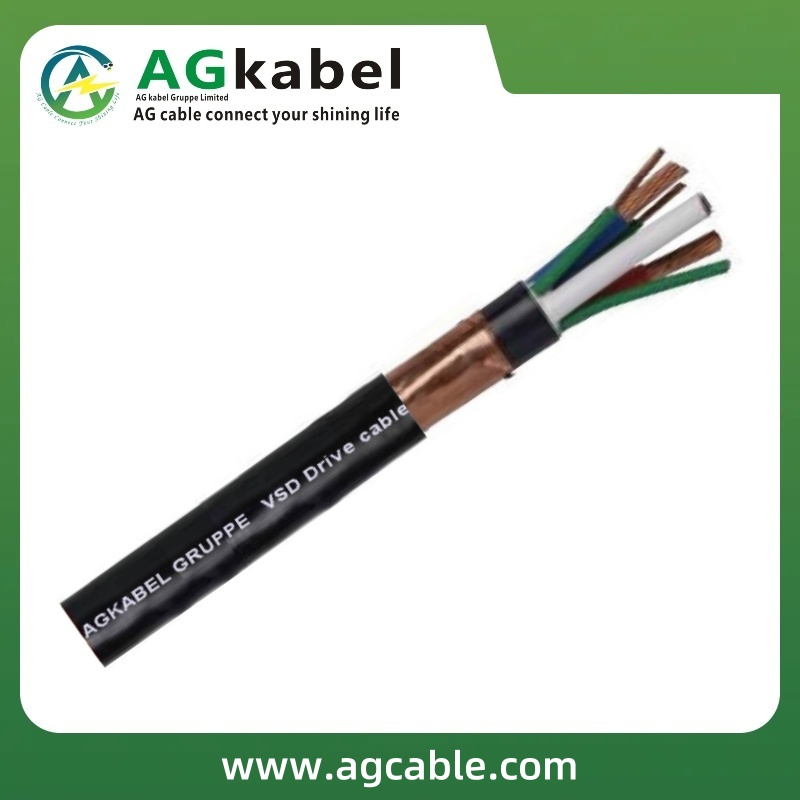

AGKABEL Copper Tape VSD Drive Cable – Rigid XLPE/PVC 0.6/1kV
High-performance screened cable designed for AC Variable Speed Drives (VSD). Features rigid XLPE insulation and a copper tape screen with split earth cores for superior RFI/EMI protection. Compliant with AS/NZS 5000.1 and IEC 60332-1. Temperature range: -30°C to +90°C. Available in 3C+3C configurations from 2.5 mm² to 300 mm².

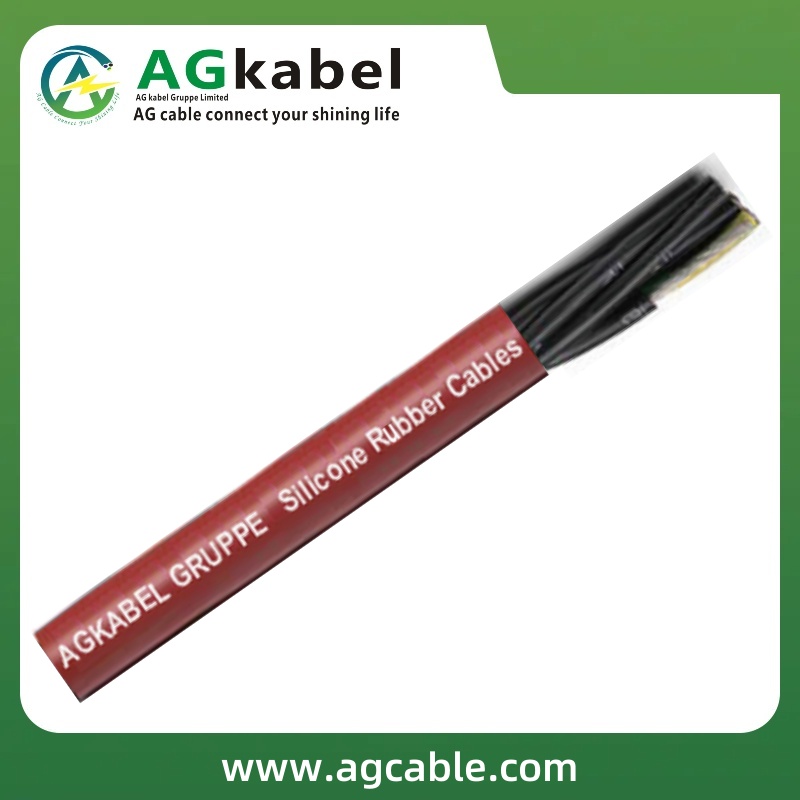

AGKABEL Multicore Silicone Rubber Flexible Cable – 450/750V
High-temperature, flexible multicore cable designed for demanding industrial and commercial applications. Features Tinned Copper Class 5 conductors and Silicone Rubber insulation with a tear-resistant silicone sheath. Compliant with AS/NZS 3808 and IEC 60332-1. Working temperature range: -60°C to +180°C. Available in 2 to 19 cores from 0.75mm² to 6.0mm². RoHS Compliant.

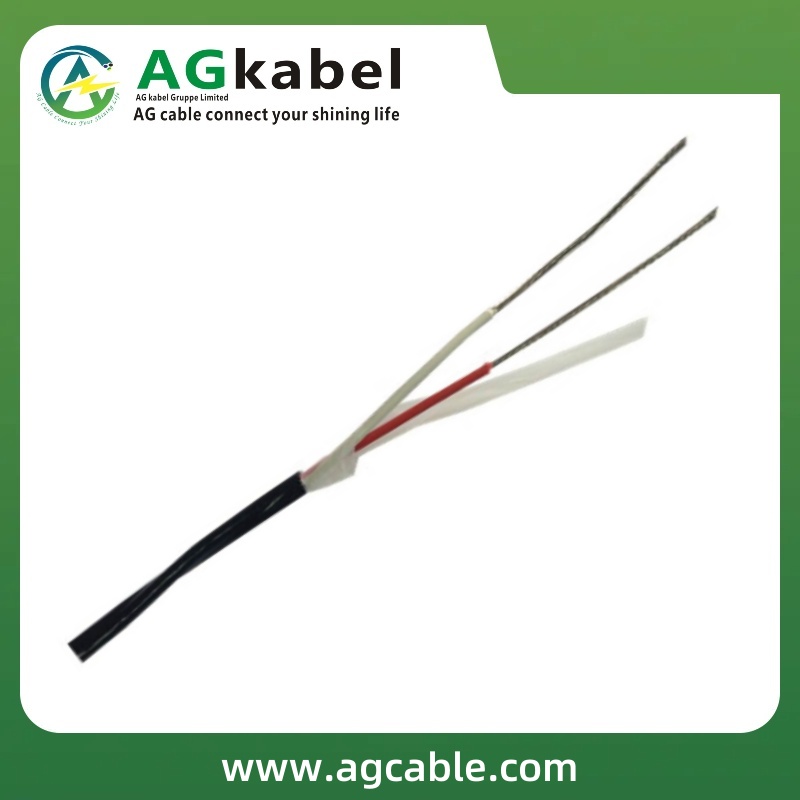

AGKABEL Multicore Teflon Heat Resistant Cable – 600V PTFE
Ultra-high-temperature multicore cable designed for power control cabinets and harsh chemical environments. Features Nickel-plated copper Class 5 conductors, PTFE insulation, and a double PTFE tape binder with PTFE sheath. Compliant with DIN VDE 0482 and IEC 60332-1. Operating temperature range: -65°C to +260°C. Suitable for submersion in polluted liquids and aggressive environments. RoHS Compliant. Available in 2 and 3 Core configurations from 0.75mm² to 3.0mm².

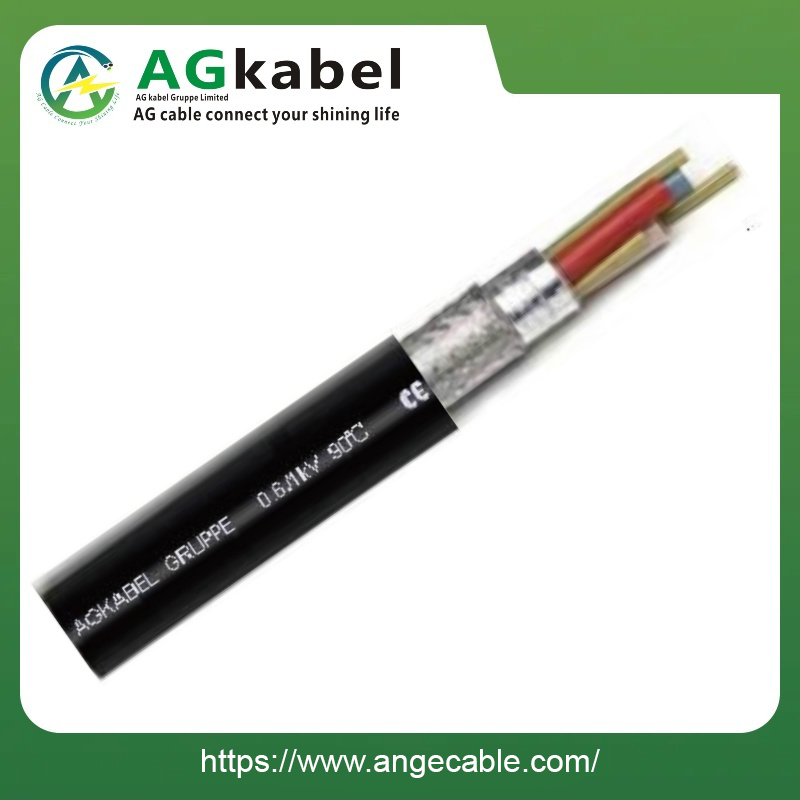

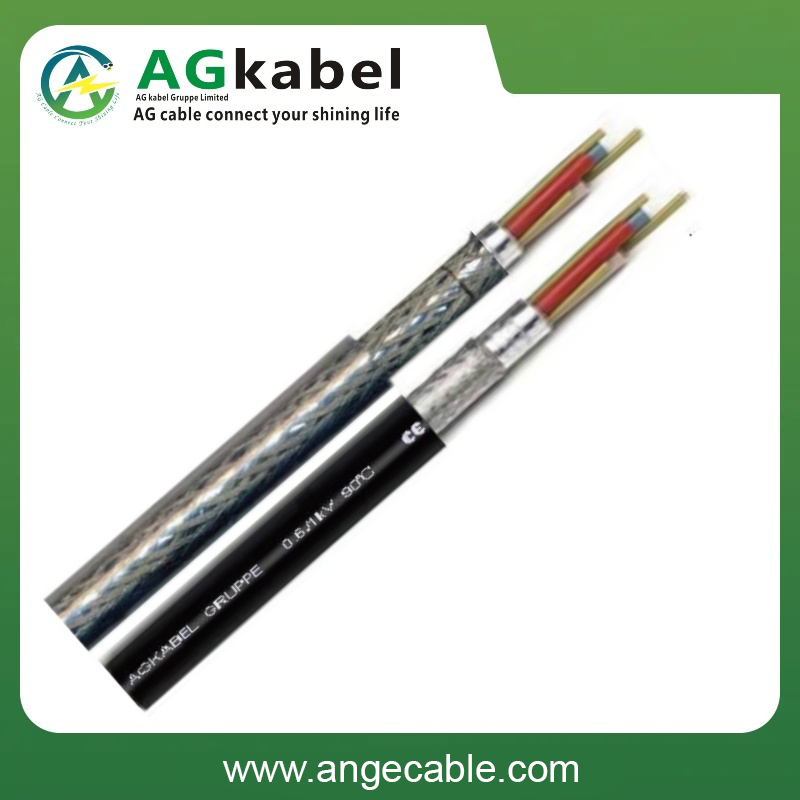

AGKABEL Screened VSD Drive Flexible Cable – XLPE/NBR 90°C 0.6/1kV
AGKABEL GRUPPE LIMITED presents the Screened VSD Drive Flexible Cable, specifically designed for the connection of AC Variable Speed Drives. This advanced cable incorporates an Aluminium/Mylar tape plus a tinned copper braid screening. For sizes 6mm² and above, it features 3 split earth cores for optimum performance against low and high-frequency Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI). This ensures that RFI/EMI does not react with other devices outside the plant, maintaining the integrity of your industrial environment.
AGKABEL Screened VSD Drive Flexible Submersible Cable – EPR/CPE R90°C 0.6/1kV
AGKABEL Screened VSD Drive Flexible Submersible Cable – EPR/CPE R90°C 0.6/1kV
High-performance screened cable designed for AC Variable Speed Drives (VSD) and submersible applications up to 100 meters depth. Features EPR R-EP-90°C insulation and a dual-layer screen (aluminum/mylar tape + tinned copper braid ≥80%). Compliant with AS 5000.1, AS 3147, and IEC 60332-1. Temperature range: -30°C to +90°C. Available from 2.5 mm² to 185 mm² in various core configurations (up to 4C+1C).

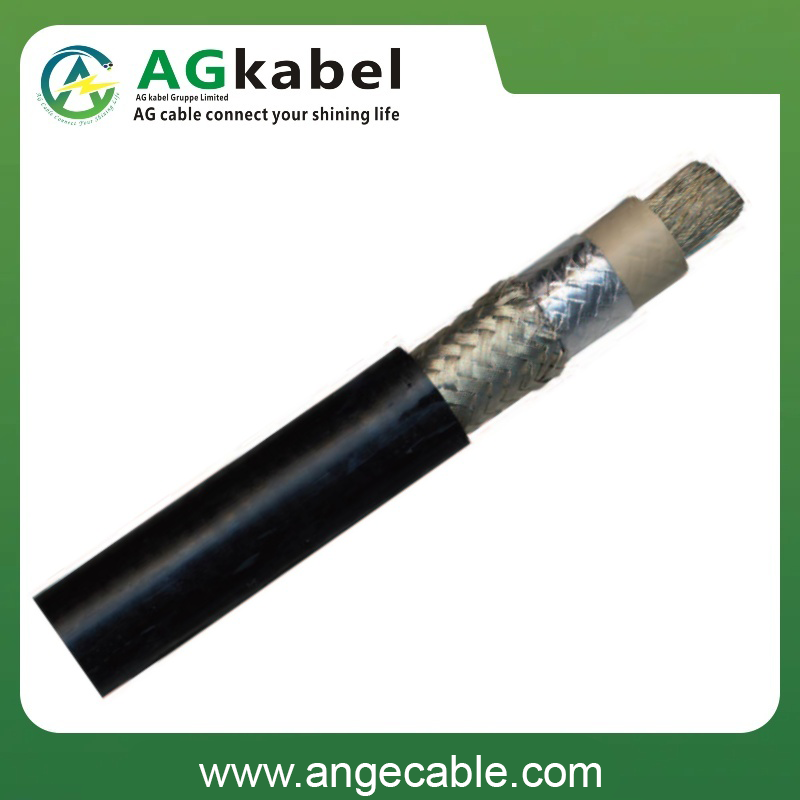

AGKABEL Screened VSD SDI Single Core Flexible Submersible Cable – 1.9/3.3kV R90°C
High-voltage, single-core flexible cable engineered for large AC Variable Speed Drives (VSD) and submersible applications. Features tinned stranded copper conductors, flexible EPR Type 3G13 insulation, and dual screening (TC braid + Aluminium/Mylar tape) for maximum EMV protection. Compliant with AS/NZS 5000.1, IEC 60228, and IEC 60332-1. Temperature range: -40°C to +90°C (Static). Available from 120mm² to 240mm².
AGKABEL Single Core Silicone Halogen Free Flexible Cable – SIAF 180°C
High-temperature, halogen-free flexible cable designed for demanding applications. Features Tinned Copper Class 5 conductors and silicone rubber insulation. Compliant with AS/NZS 5000. Ideal for switchboards, appliance wiring, stoves, ovens, public transport (railways), automotive, and marine wiring. Temperature range: -60°C to +180°C. Available from 0.75 mm² to 25 mm².
AGKABEL Heat-Resistant Silicone Multi-Core Cables SiHF – Halogen-Free
AGKABEL Heat-Resistant Silicone Twin Cables SiFZw – Halogen-Free
Silicone twin cables designed for the internal wiring of lighting and appliances at high ambient temperatures. Features a halogen-free silicone construction for safety and flexibility. Temperature range: -50°C to +180°C. Rated voltage: 380 V. Test voltage: 2000 V. Available in 2-core configurations from 0.5mm² to 1.5mm².
AGKABEL Heat-Resistant Silicone Cables (SiD, SiF, A05SJ-U, H05SJ-K, SiFZü)
Halogen-free, silicone single-core cables designed for extreme high-temperature environments. Ideal for metallurgical industries, steel works, hot rolling mills, and automotive ignition systems. Resistant to vegetable/animal fats, oils, diluted acids, oxygen, and ozone. Compliant with DIN VDE and HAR V. Temperature range: -50°C to +180°C. Rated voltage: 300/500 V. Available from 0.25mm² to 240mm².
AGKABEL Rubber-Insulated Cables NSGAFöu – 1.8/3 kV & 3.6/6 kV
Special single-core rubber-insulated cables designed for short-circuit and earth-fault safety. Particularly suitable for inherently earth-fault-proof routing in rail vehicles and buses. Compliant with DIN VDE 0250 part 602. Temperature range: -25°C to +80°C (Flexing) | -40°C to +80°C (Fixed). Nominal voltage options: 1.8/3 kV and 3.6/6 kV. Suitable for laying in dry zones. Available from 1.5mm² to 300mm².
AGKABEL Rubber-Insulated Cables H01N2-D / H01N2-E – Ultra-Flexible Welding Cables
Ultra-flexible single-core rubber-sheathed cables designed for welding applications, including connection between welding generators and hand-electrodes. Ideal for the automotive industry, shipbuilding, transport/conveyor systems, tool making, and welding robots. Retains high flexibility under ozone, oxygen, light, aggressive gases, oil, and petrol. Resistant to cold, heat, and flames. Compliant with DIN VDE 0282 part 6 or HD 22.6 S2. Temperature range: -25°C to +80°C (Flexing) | -40°C to +80°C (Fixed). Nominal voltage: 100 V. Available from 10mm² to 185mm².
AGKABEL Rubber-Insulated Cables NSSHöu-O – Heavy-Duty for Mining
Extremely robust rubber-insulated connecting cables designed for very high mechanical stress in underground and surface mining, stone pits, building sites, and industrial environments. Features an EPR-based insulation that improves ozone resistance. Compliant with DIN VDE 0250 part 812 and IEC 60332-1. Temperature range: -25°C to +80°C (Flexing) | -40°C to +80°C (Fixed). Nominal voltage: 0.6/1 kV. Available from 1 to 5 cores, 1.5mm² to 300mm².
AGKABEL Rubber-Insulated Cables H07RN-F – Heavy-Duty, Flexible, VDE Approved
AGKABEL Rubber-Insulated Cables A07RN-F – Heavy-Duty, Flexible, VDE Approved
AGKABEL Lift Control Cables YSLTÖ – for Gravity-Fed Collector Basket Operation
Flexible, number-coded feeder cables designed for load-lifting equipment (e.g., spreaders) experiencing high mechanical stress in Gravity-Fed Collector Basket operations. Features a built-in suspension strand for vertical support and is available with or without integrated fibre-optics. Rated for unrestricted outdoor and indoor use, resistant to ozone, UV radiation, and moisture. Temperature range: -20°C to +60°C (Fully flexible/Fixed). Rated voltage: 300/500 V. Available from 20 to 48 cores, 1.0mm² to 3.5mm².
AGKABEL Lift Control Cables STN – Neoprene with Suspension Strand
Robust, weather-resistant control and power cables designed for machines, equipment, and appliances constantly exposed to harsh weather (building machinery, conveyor/hoist systems, dry docks). Features a central strain-bearing support strand, ozone-resistant core insulation, and a chloroprene (neoprene) outer jacket that is hardly flammable and abrasion-resistant. Compliant with DIN VDE 0250 part 807 and DIN VDE 0282. Temperature range: -30°C to +70°C (Flexing) | -40°C to +70°C (Fixed). Nominal voltage: 450/750 V. Available from 3 to 61 cores, 1.0mm² to 16mm².
AGKABEL Lift Control Cables YMHY-KT-OZ/JZ – with 2 External Steel Wire Suspension Cores
Heavy-duty control and feeder cables designed for lifts, hoists, conveyor systems, and manual control units under extreme conditions. Features 2 external built-in steel wire suspension cores for vertical support. Temperature range: -30°C to +70°C (Flexing). Nominal voltage: 300/500 V. Available from 4 to 30 cores, 1.5mm² to 2.5mm².
AGKABEL Lift Control Cables with Suspension Strand (KYSTY, KYSTYY, KYSTUY, KYSTFUY, KYSSTUY, YSLYCYTK)
Suspension Strand, engineered for reliability in vertical transportation and continuous material handling. Designed for use as control or feeder cables in lifts and hoists, these cables are applicable under extreme conditions and are ideally suited for installation in conveyor systems and manual control units. The built-in suspension strand supports the weight of the cable during vertical hanging, preventing tension on the copper conductors.
AGKABEL Lift Control Cables with Suspension Strand (LYSLTK, YSLTK, YSLYTK, YSLYCYTK)
Suspension Strand, engineered for reliability in vertical transportation and material handling. Designed for use as control or feeder cables in lifts and hoists, these cables are suitable for suspension heights involving medium mechanical stress in dry and moist areas. The PVC outer sheath is oil-resistant according to DIN VDE 0281 part 1, ensuring durability. Choose between unscreened versions (LYSLTK, YSLTK, YSLYTK) for standard applications and the Cu-screened version (YSLYCYTK) for environments requiring electromagnetic interference (EMI) protection.
AGKABEL Lift Control Cables LIFT 2TY – with 2 External Steel Wire Suspension Cores
Heavy-duty control and feeder cables designed for lifts, hoists, conveyor systems, and manual control units under extreme conditions. Features 2 external built-in steel wire suspension cores that can be dismounted without damaging the cable insulation. Compliant with DIN VDE 0250. Temperature range: -15°C to +40°C (Flexing) | -40°C to +70°C (Fixed). Nominal voltage: 300/500 V. Max free suspension height: 50 m. Available from 8 to 30 cores, 1.0mm² to 2.5mm².
AGKABEL PUR Cables YSL11Y-OZ/JZ (H05BQ-F & H07BQ-F) – Flexible, Number Coded, Non-Abrasive
Extremely robust and flexible PUR cables designed for medium mechanical stress in dry, damp, or wet areas. Ideal for connecting agricultural/commercial equipment, heaters (no direct heat contact), electrical tools (drills, hand-held circular saws), portable motors, and refrigeration plants. Features exceptional resistance to oils, fats, petrol, ozone, oxygen, UV radiation, hydrolysis, microbial attacks, and water. Compliant with DIN VDE 0282 part 10 and HD 22.10 S1. Temperature range: -35°C to +80°C (Flexing) | -45°C to +90°C (Fixed). Nominal voltage: 300/500 V (H05BQ-F) or 450/750 V (H07BQ-F).
AGKABEL PUR Cables YSL11Y-OZ/JZ – Flexible, Number Coded, Non-Abrasive, Screened
Robust, screened control and power supply cables designed for machine tools and apparatus engineering. Features a durable, non-abrasive PUR outer jacket and overall copper screening for excellent resistance to oil, mechanical stress, and electromagnetic interference (EMI). Suitable for outdoor use under extreme conditions (within the specified temperature range). Temperature range: -5°C to +70°C (Flexing) | -40°C to +80°C (Fixed). Nominal voltage: 300/500 V. Test voltage: 3000 V. Available from 2 to 41 cores, 0.75mm² to 16mm².
