Angecable - Screened VSD Drive Submersible Cable EPR/CPE 0.6/1kV

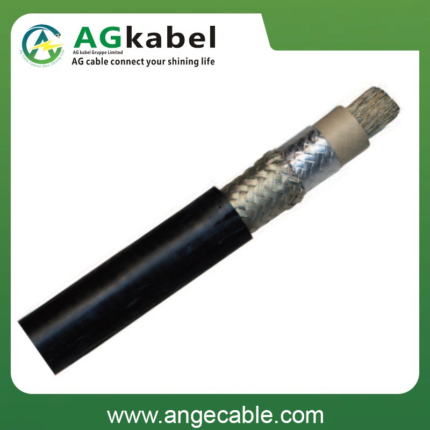

AGKABEL GRUPPE LIMITED presents the Screened VSD Drive Flexible Submersible Cable, specifically engineered for the connection of AC Variable Speed Drives. This advanced cable incorporates an Aluminium/Mylar tape plus a tinned copper braid and split earth cores for optimum screening performance against low and high-frequency Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI). This ensures that RFI/EMI does not react with other devices outside the plant. Furthermore, cables with EPR/CPE construction can be used as submersible flexible cables up to 100 meters depth, making them ideal for demanding environments.

Construction & Standards

Standard: AS 5000.1, AS 3147, IEC 60332-1
Voltage: 600/1000 Volt
Conductor: Plain annealed copper stranded to IEC 60228 Class 5 (Flexible)
Insulation: EPR R-EP-90°C
- 3C & E: Red, White, Blue & Green/Yellow
- 4C & E: Red, White, Blue, Black, Green/Yellow
Braid: Aluminium/Mylar tape plus tinned copper braid ≥80%
Sheath: 90°C flexible CPE Elastomer
Temperature Range: -30°C to +90°C
Sheath Marking: Manufacture name (trademark) and type, Production year/week or batch number, Metre-marked
Compliance: Materials used in manufacturing are RoHS Compliant

Application
AGKABEL/EMV cables are designed for AC Variable Speed Drive connections. The screening should be earthed at both ends using EMC-compatible glands that ensure contact around the circumference of the cable screening for maximum effectiveness. Suitable for submersible applications up to 100 meters depth.

Technical Specifications Table

No. of Cores	Power Cores (mm²)	Power Cores (No. of strands / Dia mm)	Earth Cores (mm²)	N.O.D. under screen (mm)	Approx. Diameter (mm)	3 Phase V.D. Mv/A/M	Approx. Weight (kg/km)
3C+3C	10	0.70	1.5	17.9	21.5	4.380	675
3C+3C	16	0.70	2.5	19.5	23.5	2.680	955
3C+3C	25	0.90	4.0	24.5	28.5	1.620	1455
3C+3C	35	0.90	6.0	25.7	32.0	1.190	2200
3C+3C	50	1.00	10.0	32.7	40.0	0.902	3210
3C+3C	70	1.10	10.0	35.0	43.3	0.608	3950
3C+3C	95	1.10	16.0	40.5	48.7	0.485	5126
3C+3C	120	1.20	16.0	43.0	51.3	0.387	5925
3C+3C	150	1.40	25.0	49.3	58.5	0.317	7146
3C+3C	185	1.60	25.0	53.7	63.0	0.259	867.5
4C+1C	2.5	0.70	2.5	10.5	15.7	17.700	533
4C+1C	4	0.70	4.0	16.2	22.4	10.900	728
4C+1C	6	0.70	6.0	17.8	24.0	7.290	952
4C+1C	10	0.70	10.0	22.0	28.2	4.380	1670

Factory Overview

Packaging

❓ Frequently Asked Questions (FAQ)

1. What is the maximum depth this cable can be submerged?
This cable is designed for submersible applications up to 100 meters depth.

2. What makes this cable suitable for Variable Speed Drives (VSD)?
It incorporates an Aluminium/Mylar tape plus a tinned copper braid (≥80%) and split earth cores for optimum screening against RFI and EMI, preventing interference with other plant equipment.

3. What is the operating temperature range of this cable?
The temperature range is -30°C to +90°C.

4. What materials are used for insulation and sheath?
The insulation is EPR R-EP-90°C and the sheath is 90°C flexible CPE Elastomer.

5. What standards does this cable comply with?
It complies with AS 5000.1, AS 3147, and IEC 60332-1. The materials are also RoHS Compliant.

6. How should the cable screening be earthed?
The screening should be earthed at both ends using EMC-compatible glands that ensure contact around the circumference of the cable screening.

7. What sizes and core configurations are available?
Available from 2.5mm² to 185mm² in configurations including 3C+3C and 4C+1C.
