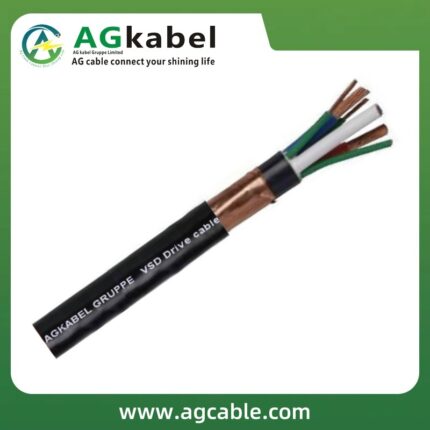

AGKABEL Screened VSD Drive Flexible Cable – XLPE/NBR 90°C 0.6/1kV
AGKABEL GRUPPE LIMITED presents the Screened VSD Drive Flexible Cable, specifically designed for the connection of AC Variable Speed Drives. This advanced cable incorporates an Aluminium/Mylar tape plus a tinned copper braid screening. For sizes 6mm² and above, it features 3 split earth cores for optimum performance against low and high-frequency Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI). This ensures that RFI/EMI does not react with other devices outside the plant, maintaining the integrity of your industrial environment.
AGKABEL GRUPPE LIMITED presents the Screened VSD Drive Flexible Cable, specifically designed for the connection of AC Variable Speed Drives. This advanced cable incorporates an Aluminium/Mylar tape plus a tinned copper braid screening. For sizes 6mm² and above, it features 3 split earth cores for optimum performance against low and high-frequency Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI). This ensures that RFI/EMI does not react with other devices outside the plant, maintaining the integrity of your industrial environment.
Construction & Standards
-
Standard: AS 3008.1.1, AS 5000.1, IEC 60332-1
-
Voltage: 600/1000 Volt
-
Conductor: Plain annealed copper stranded to IEC 60228 Class 5 (Flexible)
-
Insulation: XLPE 90°C
-
2 Core & Earth: Red, Black, Green/Yellow
-
3 Core & Earth: Red, White, Blue, Green/Yellow
-
-
Braid: Aluminium/Mylar tape plus tinned copper braid ≥80%
-
Sheath: 90°C flexible NBR Elastomer or Clear sheath 90° flexible PVC
-
Max. Operating Temp: Flexing: -20 to +90°C | Static: -30 to +90°C
-
Sheath Marking: Manufacture name (trademark) and type, Production year/week or batch number, Metre-marked
-
Sheath Color: Transparent or Black (Transparent or Black up to 35mm², Black only over 35mm²)
Application
AGKABEL/EMV cables are designed for AC Variable Speed Drive connections. The screening should be earthed at both ends using EMC-compatible glands that ensure contact around the circumference of the cable screening for maximum effectiveness.
Technical Specifications Table
| No. of Cores | Power Cores (mm²) | Power Cores (No. of strands / Dia mm) | Earth Cores (mm²) | N.O.D. under screen (mm) | Approx. Diameter (mm) | 3 Phase V.D. Mv/A/M | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 2C+1C | 1.5 | 0.70 | 1.5 | 8.6 | 12.5 | 29.40 | 155 |
| 2C+1C | 2.5 | 0.70 | 2.5 | 9.6 | 13.5 | 17.60 | 195 |
| 3C+1C | 1.5 | 0.70 | 1.5 | 9.5 | 13.5 | 29.40 | 195 |
| 3C+1C | 2.5 | 0.70 | 2.5 | 10.6 | 14.5 | 17.60 | 245 |
| 3C+1C | 4 | 0.80 | 4.0 | 12.7 | 16.5 | 10.90 | 350 |
| 3C+1C | 6 | 0.90 | 1.5 | 16.0 | 19.5 | 7.29 | 445 |
| 2C+3C | 1.5 | 0.70 | 1.5 | 8.6 | 12.5 | 29.40 | 155 |
| 2C+1C | 2.5 | 0.70 | 2.5 | 9.6 | 13.5 | 17.60 | 195 |
| 3C+1C | 1.5 | 0.70 | 1.5 | 9.5 | 13.5 | 29.40 | 195 |
| 3C+1C | 2.5 | 0.70 | 2.5 | 10.6 | 14.5 | 17.60 | 245 |
| 3C+1C | 4 | 0.80 | 4.0 | 12.7 | 16.5 | 10.90 | 350 |
| 3C+3C | 6 | 0.90 | 1.5 | 16.0 | 19.5 | 7.29 | 445 |
| 3C+3C | 10 | 1.10 | 1.5 | 17.9 | 21.5 | 4.38 | 675 |
| 3C+3C | 16 | 1.20 | 2.5 | 19.5 | 23.5 | 2.68 | 955 |
| 3C+3C | 25 | 1.60 | 4.0 | 24.5 | 28.5 | 1.62 | 1455 |
| 3C+3C | 35 | 1.70 | 6.0 | 25.7 | 32.0 | 1.19 | 2200 |
| 3C+3C | 50 | 1.80 | 10.0 | 27.2 | 33.0 | 0.902 | 2600 |
