AGKABEL PVC Cables for Industrial Application – A05VV-F, H05VV-F & H03VVH2-F (HAR)
Versatile PVC multi-core and flat cables designed for household, office, and light industrial applications. The A05VV-F/H05VV-F series handles medium mechanical stress in damp/wet zones (e.g., refrigerators, washing machines) and allows for fixed installation in furniture. The H03VVH2-F flat cable is ideal for small appliances with very low mechanical stress (e.g., desk lamps, vacuum cleaners). Compliant with DIN VDE 0281 part 5 / IEC 60227-5 / HD 21.5 S3. Temperature range: -5°C to +70°C (Flexing) | -40°C to +70°C (Fixed). Nominal voltage: 300/500 V (A05/H05) or 300/300 V (H03).
AGKABEL GRUPPE LIMITED presents a comprehensive range of PVC Cables for Industrial Application, engineered for reliable performance in everyday and commercial environments.

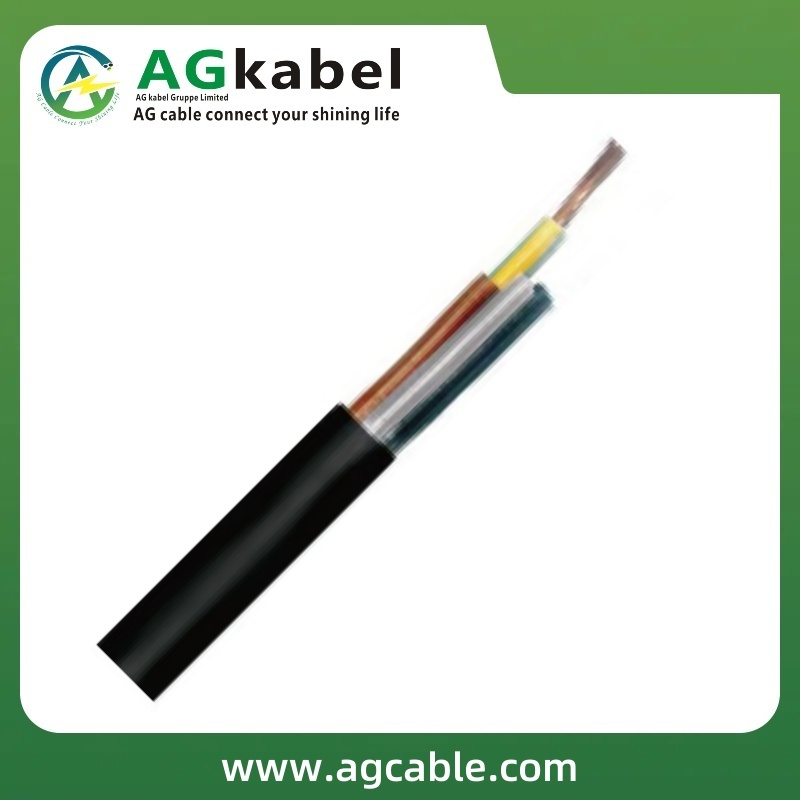

The A05VV-F and H05VV-F multi-core cables are especially suited for appliances with medium mechanical stress in households and offices, damp and wet zones (e.g., refrigerators and washing machines), and cooking/heating apparatus (provided they don’t come in direct contact with hot parts). They are also suitable for fixed installation in furniture, decoration coverings, and hollow spaces of prefabricated building parts. Note: Not for outdoor use or industrial/agricultural machineries.

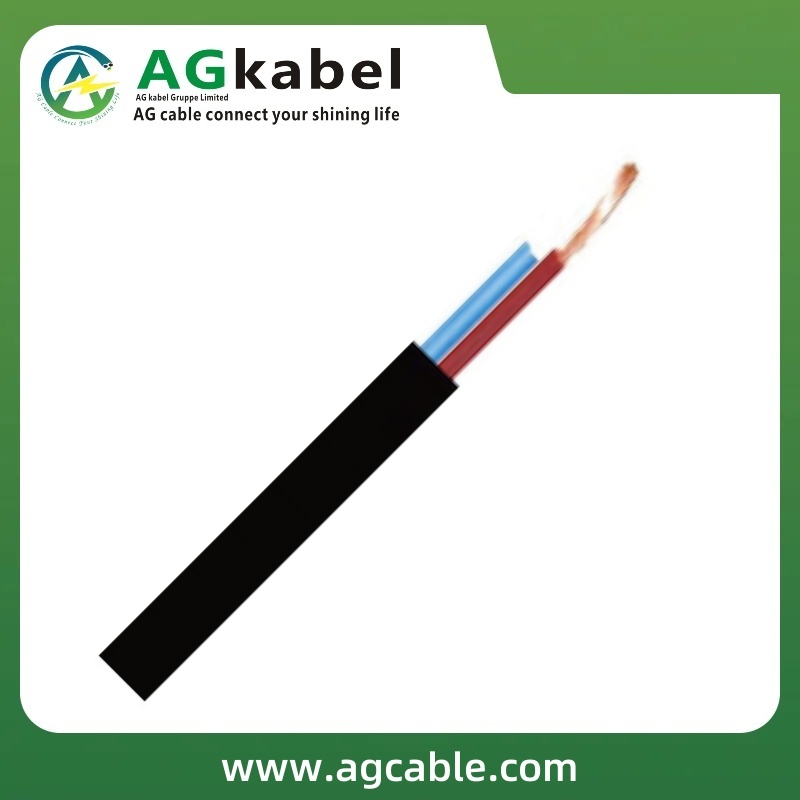

The H03VVH2-F flat cables are designed for small appliances with very low mechanical stress in households and offices, such as kitchen utensils, desk lamps, floor lamps, and vacuum cleaners. Note: Not permitted for cooking/heating apparatus. Cables with 0.75 mm² cross-section are not suitable for outdoor use or industrial/agricultural machineries.
Technical Data
-
A05VV-F/H05VV-F Standard: acc. to DIN VDE 0281 part 5 and IEC 60227-5, HD 21.5 S3
-
Voltage: 300/500 V (Max AC: 330/550 V; DC: 495/825 V)
-
Test Voltage: 2000 V
-
-
H03VVH2-F Standard: HAR approved
-
Voltage: 300/300 V
-
-
Temperature range (Both):
-
Flexing: -5°C to +70°C
-
Fixed installation: -40°C to +70°C
-
Technical Specifications Table
A05VV-F / H05VV-F (Multi-Core – Sheath colours: white, black)
| Part N° | N° of cores x cross-sec mm² | Outer diameter ca. mm | Copper weight kg/km | Weight ca. kg/km |
|---|---|---|---|---|
| RD-Y(St)Y Series | ||||
| 11807037 | 7G1,5 | 11,5 | 101,00 | 209,00 |
| RD-Y(St)Yv Series | ||||
| 11807039 | 2X2,5 | 9,3 | 48,00 | 126,00 |
| 11807042 | 3G2,5 | 10,0 | 72,00 | 158,00 |
| 11807043 | 4G2,5 | 11,0 | 96,00 | 196,00 |
| 11807046 | 5G2,5 | 12,3 | 120,00 | 242,00 |
(Further dimensions available on request.)
H03VVH2-F (Flat Cable)
| Part N° | N° of cores x cross-sec mm² | Outer diameter ca. mm | Copper weight kg/km | Weight ca. kg/km |
|---|---|---|---|---|
| 11806001 | 2X0,75 | 5,6 | 14,4 | 34,00 |
Factory Overview
Packaging & Shipping
❓ Frequently Asked Questions (FAQ)
1. What are the primary applications for the A05VV-F / H05VV-F cables?
They are suited for appliances with medium mechanical stress (e.g., refrigerators, washing machines), cooking and heating apparatus (no direct hot part contact), and fixed installation in furniture or prefabricated building parts.
2. What is the H03VVH2-F flat cable used for?
It is designed for small appliances with very low mechanical stress, such as kitchen utensils, desk lamps, floor lamps, and vacuum cleaners.
3. What is the temperature range for these cables?
-
Flexing: -5°C to +70°C
-
Fixed installation: -40°C to +70°C
4. What are the voltage ratings?
-
A05VV-F / H05VV-F: 300/500 V (Test voltage 2000 V)
-
H03VVH2-F: 300/300 V
5. Are these cables HAR approved?
Yes, the H05VV-F and H03VVH2-F cables are HAR approved.
6. Can these cables be used outdoors or in industrial machinery?
No, the standard versions (and specifically the 0.75 mm² flat cables) are not suitable for outdoor use or use in industrial and agricultural machineries.
7. What standards do the A05VV-F / H05VV-F cables comply with?
They comply with DIN VDE 0281 part 5, IEC 60227-5, and HD 21.5 S3.
